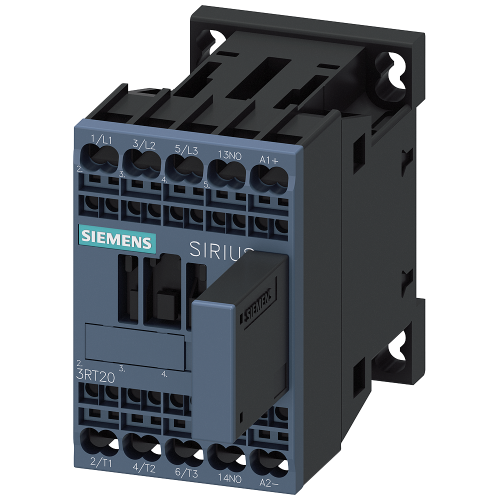

3RT20152QB41

Power contactor, AC-3 7 A, 3kW / 400 V 1 NO, 24 V DC 0.7-1.25* US, with varistor plugged on, 3-pole

Manufacturer's No: 3RT2015-2QB41     Manufacturer: Siemens
Power contactor, AC-3 7 A, 3kW / 400 V 1 NO, 24 V DC 0.7-1.25* US, with varistor plugged on, 3-pole

View 3D

Availability Back Order

£38.97
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 7 A and 3 kW / 400 V
  • 3-pole contactor with 24 V DC coil voltage
  • Operating voltage range of 0.7-1.25 times the rated voltage
  • Equipped with a varistor
  • Includes 1 normally open auxiliary contact
  • Features spring-loaded terminals
  • Size: S00
  • Not compatible with additional auxiliary switches

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2015-2QB41
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
18 Ampere
Rated operation current Ie at AC-3, 400 V -
7 Ampere
Rated operation current Ie at AC-4, 400 V -
6.5 Ampere
Rated operation power at AC-3, 400 V -
3 Kilowatt
Rated operation power NEMA -
2.20649625 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
DC

Availability Back Order

£38.97
