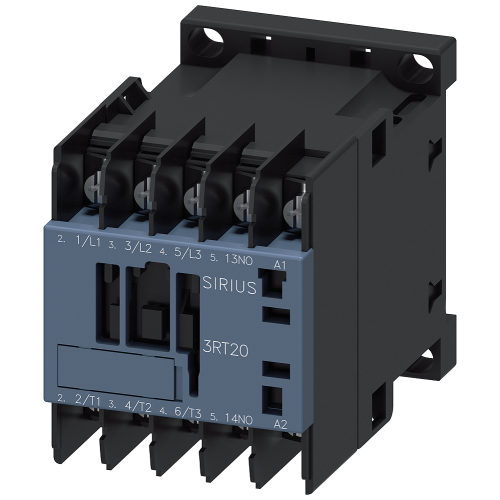

3RT20164AP61

Power contactor, AC-3 9 A, 4kW / 400 V 1 NO, 220 V AC, 50 Hz, 240 V 60 Hz, 3-pole, Size S00 ring cable lug connection

Manufacturer's No: 3RT2016-4AP61     Manufacturer: Siemens
Power contactor, AC-3 9 A, 4kW / 400 V 1 NO, 220 V AC, 50 Hz, 240 V 60 Hz, 3-pole, Size S00 ring cable lug connection

Availability On Request

£34.66
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 9 A and 4 kW for 400 V
  • 3-pole configuration with 220 V AC, 50 Hz / 240 V, 60 Hz
  • Features 1 normally open auxiliary contact
  • Equipped with ring cable lug connection
  • Size: S00
Product video


Product

Manufacturer Material ID -
3RT2016-4AP61
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
240 Volt
Modular version -
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
240 Volt
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
3.677493749 Kilowatt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
AC

Availability On Request

£34.66
