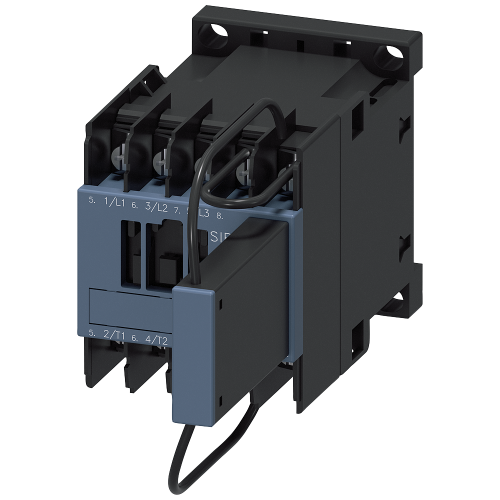

3RT20174KB420LA0

Contactor, AC-3e, 5.5 kW/400 V, 24 V DC, 0.7-1.25*Us, suppressor diode, 3-pole, for PLC

Manufacturer's No: 3RT2017-4KB42-0LA0     Manufacturer: Siemens
Contactor, AC-3e, 5.5 kW/400 V, 24 V DC, 0.7-1.25*Us, suppressor diode, 3-pole, for PLC

Availability On Request

£76.88
  • Traction contactor for AC-3e/AC-3 applications
  • Rated at 12 A and 5.5 kW / 400 V
  • 3-pole contactor with 24 V DC coil
  • Operating voltage range of 0.7-1.25 times Us
  • Integrated suppressor diode for protection
  • Auxiliary contacts: 1 normally closed (NC)
  • Features ring cable lug connection
  • Size: S00
  • Includes plugged-on series resistor
Product video


Product

Manufacturer Material ID -
3RT2017-4KB42-0LA0
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power at AC-4, 400 V -
4 Kilowatt
Rated operation power NEMA -
5.516240624 Kilowatt
Type of electrical connection of main circuit -
Other
Voltage type for actuating -
DC

Availability On Request

£76.88
