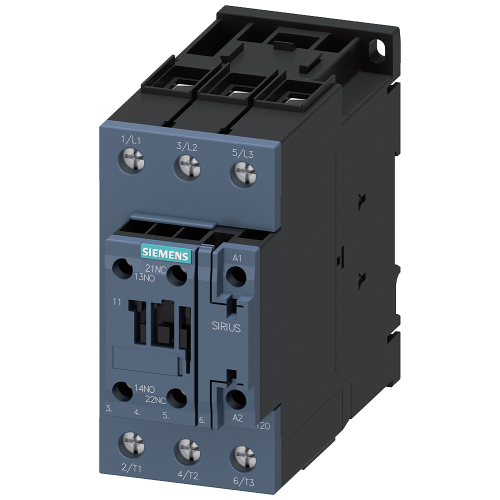

3RT20361XB400LA2

Traction contactor, AC-3 50 A, 22kW / 400 V 1 NO + 1 NC, 24 V DC, 0.7-1.25* US, with varistor, 3-pole, Size S2, screw terminal

Manufacturer's No: 3RT2036-1XB40-0LA2     Manufacturer: Siemens
Traction contactor, AC-3 50 A, 22kW / 400 V 1 NO + 1 NC, 24 V DC, 0.7-1.25* US, with varistor, 3-pole, Size S2, screw terminal

Availability On Request

£365.87
  • Traction contactor for AC-3e/AC-3 applications
  • Rated at 51 A, 22 kW / 400 V, 3-pole
  • Control voltage: 24 V DC
  • Operating voltage range: 0.7-1.25* Us
  • Equipped with electronic drive and integrated varistor
  • Auxiliary contacts: 1 NO + 1 NC
  • Connection via screw terminals
  • Size: S2

Accessories

Spare part

Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2036-1XB40-0LA2
Net Weight -
1.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
70 Ampere
Rated operation current Ie at AC-3, 400 V -
51 Ampere
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-3, 400 V -
22 Kilowatt
Rated operation power at AC-4, 400 V -
22 Kilowatt
Rated operation power NEMA -
29.41995 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
