3RT23161AK60

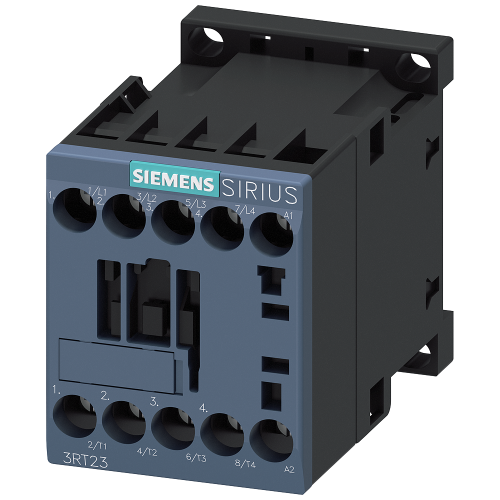

Contactor, 4 NO, AC-1: 18 A 110 V AC, 50 Hz / 120 V, 60Hz, 4-pole, 4 NO, Size S00, Screw terminal

Manufacturer's No: 3RT2316-1AK60     Manufacturer: Siemens
Contactor, 4 NO, AC-1: 18 A 110 V AC, 50 Hz / 120 V, 60Hz, 4-pole, 4 NO, Size S00, Screw terminal

Availability On Request

£36.72
  • Contactor type: AC-1
  • Current rating: 18 A
  • Voltage rating: 400 V at 40°C
  • Configuration: 4-pole
  • Coil voltage: 110 V AC (50 Hz) / 120 V (60 Hz)
  • Terminal type: Screw terminal
  • Size: S00

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2316-1AK60
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
120 Volt
Modular version -
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
120 Volt
Rated operation current Ie at AC-1, 400 V -
18 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power at AC-4, 400 V -
4 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability On Request

£36.72
