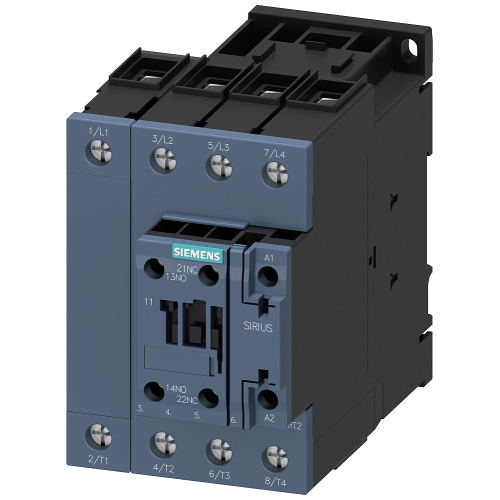

3RT23361AH20

Contactor, 4 NO, AC-1: 60 A 48 V AC, 50 / 60 Hz, 4-pole, 4 NO, Size S2, Screw terminal 1 NO + 1 NC integrated

Manufacturer's No: 3RT2336-1AH20     Manufacturer: Siemens
Contactor, 4 NO, AC-1: 60 A 48 V AC, 50 / 60 Hz, 4-pole, 4 NO, Size S2, Screw terminal 1 NO + 1 NC integrated

Availability On Request

£180.28
  • Contactor type: AC-1
  • Current rating: 60 A
  • Voltage rating: 400 V at 40°C
  • Configuration: 4-pole
  • Coil voltage: 48 V AC, 50/60 Hz
  • Auxiliary contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
  • Terminal type: Screw terminal
  • Size: S2

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2336-1AH20
Net Weight -
1.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
48 Volt
Rated control supply voltage Us at AC 60HZ -
48 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
48 Volt
Rated control supply voltage at AC 60 Hz -
48 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability On Request

£180.28
