3RT25351NB30

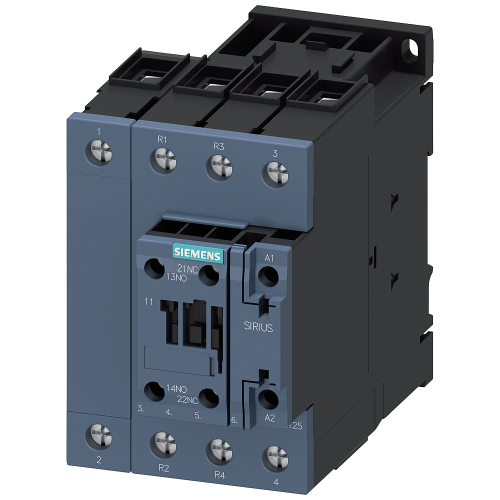

Contactor AC-3, 2 NO + 2 NC, 18.5 kW 20-33 V AC/DC, varistor, 4-pole 2 NO + 2 NC, 1 NO + 1 NC integr.

Manufacturer's No: 3RT2535-1NB30     Manufacturer: Siemens
Contactor AC-3, 2 NO + 2 NC, 18.5 kW 20-33 V AC/DC, varistor, 4-pole 2 NO + 2 NC, 1 NO + 1 NC integr.

Availability On Request

£221.38
  • Power contactor for AC-3 applications
  • Rated current: 35 A
  • Rated power: 18.5 kW at 400 V
  • 4-pole contactor
  • Control voltage: 20-33 V AC/DC, 50/60 Hz
  • Integrated varistor for protection
  • Main contacts: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Auxiliary contacts: 1 NO + 1 NC
  • Screw terminals for connections
  • Size: S2

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2535-1NB30
Net Weight -
1.19kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
35 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power NEMA -
14.709975 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability On Request

£221.38
