3RT29262PA01

Pneumatic timing relay block ON delay 0.1 ... 30 s 1 NO + 1 NC, for motor contactors size S0

Manufacturer's No: 3RT2926-2PA01     Manufacturer: Siemens
Pneumatic timing relay block ON delay 0.1 ... 30 s 1 NO + 1 NC, for motor contactors size S0

Availability On Request

POA
  • Type: Pneumatic timing relay block
  • Function: ON delay
  • Time Range: 0.1 to 30 seconds

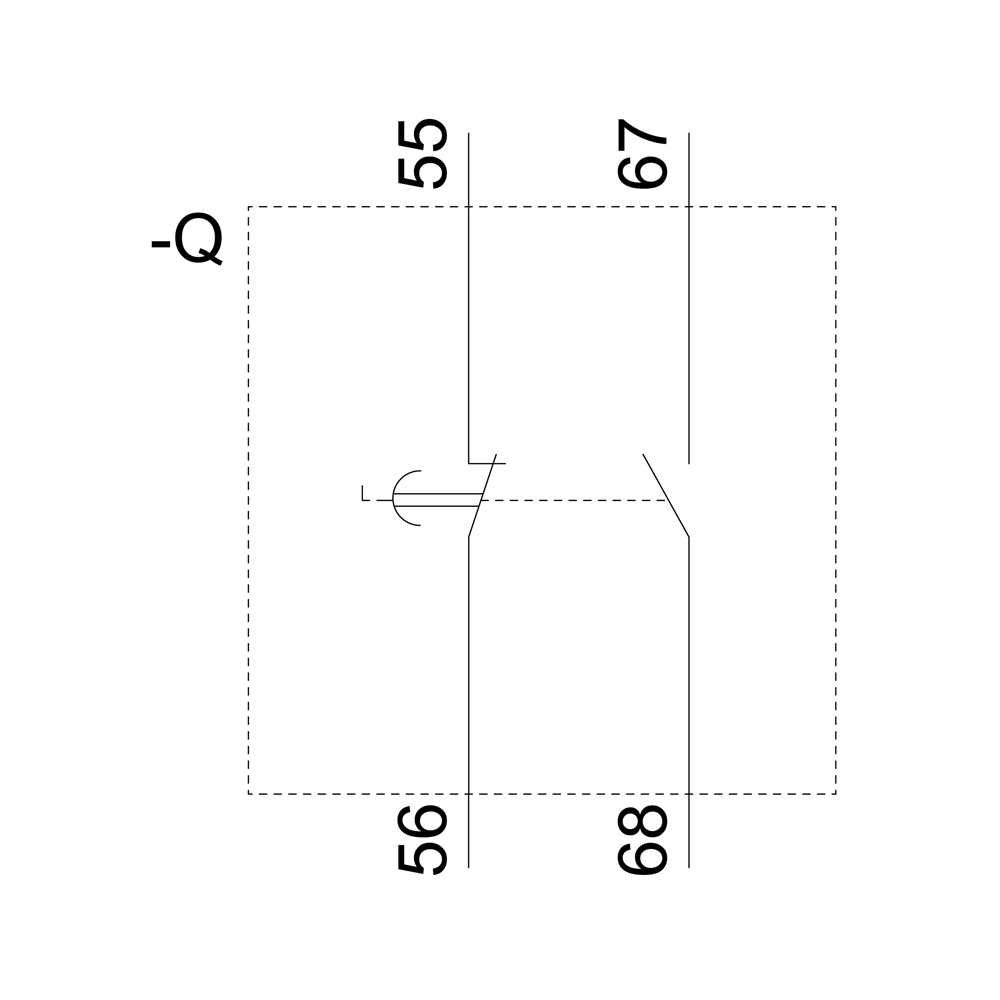

  • Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
  • Compatibility: Motor contactors size S0
  • Note: Phased-out product

Follow-up article

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2926-2PA01
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Operating principle -
UN
Number of contacts as change-over contact -
-
Switching function -
Operating delayed
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Operating technology -
Electronic
Setting time -
0.1 Second
