3RV10414HA15

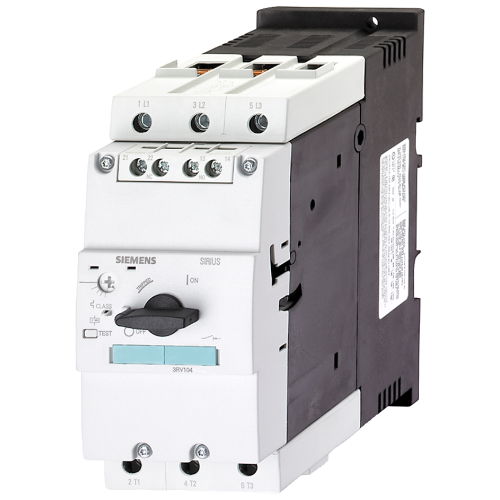

Circuit breaker size S3 for motor protection, Class 10 A-release 36...50 A Short-circuit release 650

Manufacturer's No: 3RV1041-4HA15     Manufacturer: Siemens
Circuit breaker size S3 for motor protection, Class 10 A-release 36...50 A Short-circuit release 650

Availability On Request

POA

This product has been superseded by

3RV20314WA15

Please check compatibility before purchasing.

  • Circuit breaker size: S3
  • Motor protection
  • Class 10 A-release: 36...50 A
  • Short-circuit release: 650 A
  • 1 Normally Open (NO) + 1 Normally Closed (NC) transverse Screw terminal
  • Standard switching capacity
  • Phased-out product
  • Successor: SIRIUS 3RV2
  • Preferred successor type: 3RV2031-4WA15


Product

Manufacturer Material ID -
3RV1041-4HA15
Net Weight -
2.24kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Switch off technique -
UN
Rated operation power at AC-3, 230 V -
- Kilowatt
Adjustment range undelayed short-circuit release -
- Ampere
Device construction -
UN
Width -
70 Millimetre
Height -
165 Millimetre
Depth -
174 Millimetre
Rated operation power at AC-3, 400 V -
22 Kilowatt
With integrated auxiliary switch -
Rated permanent current Iu -
50 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
36 Ampere
Degree of protection (IP) -
IP20
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Turn button
Rated short-circuit breaking capacity lcu at 400 V, AC -
50 kiloampere
Phase failure sensitive -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RV20314WA15

Please check compatibility before purchasing.
