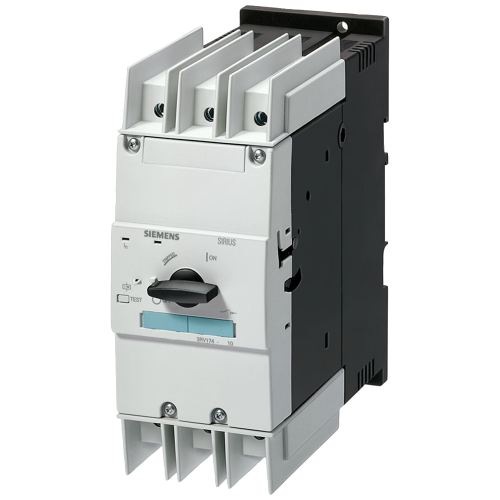

3RV17425ED10

Circuit breaker size S3 for system protection with approval circuit breaker UL 489, CSA C22.2 No.5-0

Manufacturer's No: 3RV1742-5ED10     Manufacturer: Siemens
Circuit breaker size S3 for system protection with approval circuit breaker UL 489, CSA C22.2 No.5-0

Availability On Request

POA

This product has been superseded by

3RV27425ED10

Please check compatibility before purchasing.

  • Circuit breaker size: S3
  • System protection approval: UL 489, CSA C22.2 No.5-0, CSA C22.2 No.5-02
  • A-release: 30 A
  • Short-circuit release: 390 A
  • Screw terminal
  • Standard switching capacity
  • Phased-out product
  • Successor: SIRIUS 3RV2
  • Preferred successor type: 3RV2742-5ED10


Product

Manufacturer Material ID -
3RV1742-5ED10
Net Weight -
2.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated voltage -
- Volt
Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
- Ampere
Device construction -
UN
Rated permanent current Iu -
30 Ampere
Number of poles -
3
Overload release current setting -
30 Ampere
Number of auxiliary contacts as change-over contact -
0
Degree of protection (IP) -
IP20
Position of connection for main current circuit -
Front side
Type of electrical connection of main circuit -
Other
Type of control element -
Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RV27425ED10

Please check compatibility before purchasing.
