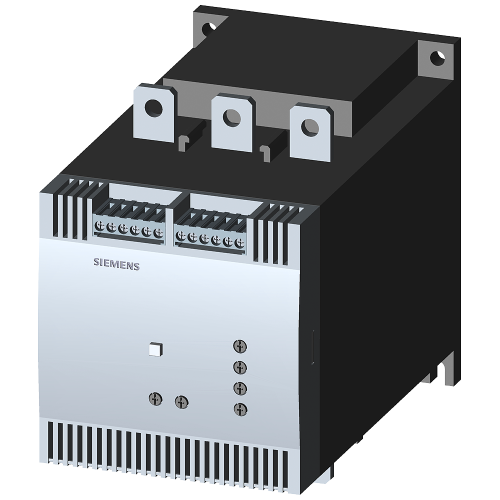

3RW40736BB45

SIRIUS soft starter S12 230 A, 160kW/500 V, 40 °C 400-600 V AC, 230 V AC Screw terminals

Manufacturer's No: 3RW4073-6BB45     Manufacturer: Siemens
SIRIUS soft starter S12 230 A, 160kW/500 V, 40 °C 400-600 V AC, 230 V AC Screw terminals

View 3D

Availability Back Order

POA
  • SIRIUS soft starter S12
  • Current rating: 230 A
  • Power rating: 160 kW at 500 V
  • Operating temperature: 40°C
  • Voltage range: 400-600 V AC
  • Control voltage: 230 V AC
  • Screw terminals
  • Phased-out product
  • Successor: SIRIUS 3RW5
  • Preferred successor type: 3RW5073-6AB15

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Instructional video
Instructional video
Product video
Product video
Presentation video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4073-6BB45
Net Weight -
8.79kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at 40 ∞C Tu -
230 Ampere
Rated power three-phase motor, inline, at 230 V -
- Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
- Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operating voltage Ue -
400 Volt
Rated operation current Ie at 40 °C Tu -
230 Ampere
Rated power three-phase motor, inline, at 400 V -
132 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Other
Voltage type for actuating -
AC

Availability Back Order

POA
