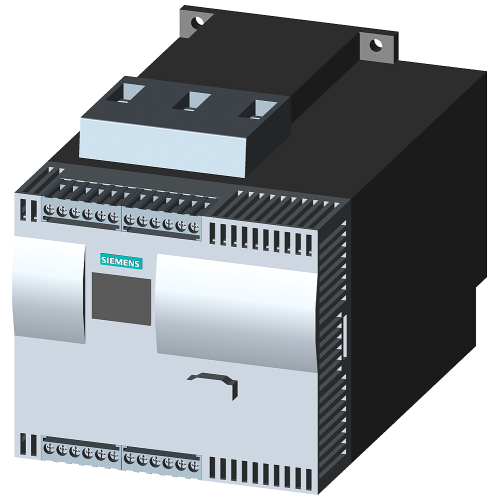

3RW44241BC34

22kW 3PH SOFTSTARTER 115VAC

Manufacturer's No: 3RW4424-1BC34     Manufacturer: Siemens
22kW 3PH SOFTSTARTER 115VAC

View 3D

Availability Back Order

POA
  • Softstarter type: 22kW 3-phase
  • Input voltage: 115VAC
  • Standard values at 460V, 50°C: 42A, 25 hp
  • Inside-delta values: 73A, 50 hp
  • Voltage range: 200-460V AC, 115V AC
  • Connection: Screw terminals
  • Phased-out product
  • Successor model: SIRIUS 3RW5
  • Preferred successor type: 3RW5524-1HA14

Follow-up article

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4424-1BC34
Net Weight -
5.43kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Rated operation current Ie at 40 ∞C Tu -
47 Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
115 Volt
Rated control supply voltage Us at AC 60HZ -
115 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Display -
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
115 Volt
Rated control supply voltage at AC 60 Hz -
115 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
47 Ampere
Rated power three-phase motor, inline, at 230 V -
11 Kilowatt
Rated power three-phase motor, inline, at 400 V -
22 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
22 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
45 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Torque control -
Voltage type for actuating -
AC
