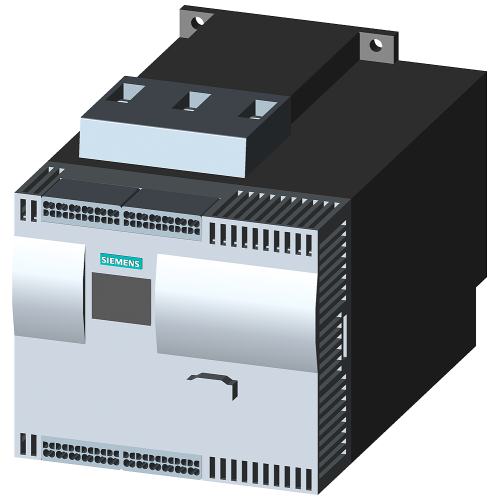

3RW44253BC34

SIRIUS soft starter Values at 460 V, 50 °C Standard: 51 A, 30 hp Inside-delta: 88 A, 60 hp 200-460

Manufacturer's No: 3RW4425-3BC34     Manufacturer: Siemens
SIRIUS soft starter Values at 460 V, 50 °C Standard: 51 A, 30 hp Inside-delta: 88 A, 60 hp 200-460

Availability On Request

POA
  • SIRIUS soft starter
  • Voltage: 460 V
  • Operating temperature: 50°C
  • Standard current: 51 A, 30 hp
  • Inside-delta current: 88 A, 60 hp
  • Voltage range: 200-460 V AC
  • Terminals: 115 V AC spring-type
  • Phased-out product
  • Successor model: SIRIUS 3RW5
  • Preferred successor type: 3RW5525-3HA14

Follow-up article

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4425-3BC34
Net Weight -
5.57kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Rated operation current Ie at 40 ∞C Tu -
57 Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
115 Volt
Rated control supply voltage Us at AC 60HZ -
115 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Display -
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
115 Volt
Rated control supply voltage at AC 60 Hz -
115 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
57 Ampere
Rated power three-phase motor, inline, at 230 V -
15 Kilowatt
Rated power three-phase motor, inline, at 400 V -
30 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
30 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
55 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Torque control -
Voltage type for actuating -
AC
-
- SIRIUS soft starter - Voltage: 460 V - Operating temperature: 50°C - Standard current: 51 A, 30 hp - Inside-delta current: 88 A, 60 hp - Voltage range: 200-460 V AC - Terminals: 115 V AC spring-type - Phased-out product - Successor model: SIRIUS 3RW5 - Preferred successor type: 3RW5525-3HA14

Availability On Request

POA
