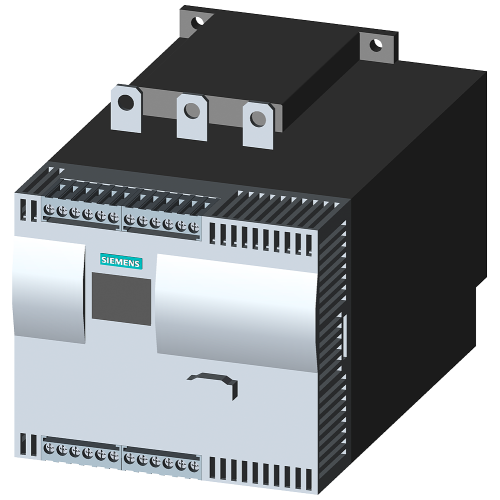

3RW44366BC44

90kW 3PH SOFTSTARTER 230VAC

Manufacturer's No: 3RW4436-6BC44     Manufacturer: Siemens
90kW 3PH SOFTSTARTER 230VAC

Availability On Request

POA

This product has been superseded by

3RW55366HA14

Please check compatibility before purchasing.

  • Softstarter type: 3-phase, 90 kW
  • Voltage: 230 VAC
  • Current ratings at 400 V, 40°C:
    • Standard: 162 A, 90 kW
    • Inside-delta: 281 A, 160 kW
  • Voltage range: 200-460 V AC, 230 V AC
  • Connection: Screw terminals
  • Phased-out product
  • Successor model: SIRIUS 3RW5
  • Preferred successor type: 3RW5536-6HA14

Follow-up article

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4436-6BC44
Net Weight -
6.25kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Rated operation current Ie at 40 ∞C Tu -
162 Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Display -
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
162 Ampere
Rated power three-phase motor, inline, at 230 V -
45 Kilowatt
Rated power three-phase motor, inline, at 400 V -
90 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
90 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
160 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Torque control -
Voltage type for actuating -
AC

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RW55366HA14

Please check compatibility before purchasing.
