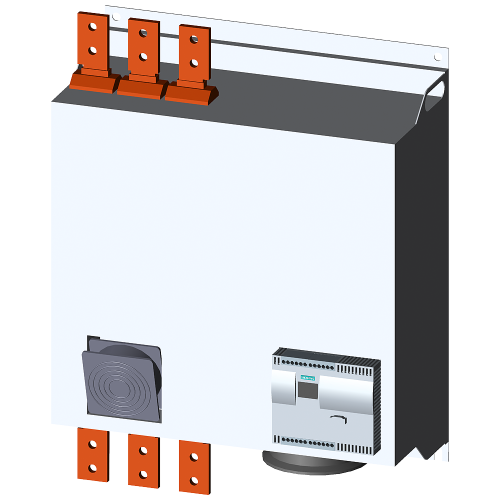

3RW44656BC34

630kW 3PH SOFTSTARTER 115VAC

Manufacturer's No: 3RW4465-6BC34     Manufacturer: Siemens
630kW 3PH SOFTSTARTER 115VAC

Availability On Request

POA
  • Softstarter type: 3-phase, 630 kW
  • Voltage: 115 VAC, 200-460 VAC
  • Current ratings:
    • Standard: 970 A, 850 hp at 460 V, 50°C
    • Inside-delta: 1680 A, 1500 hp
  • Successor model: SIRIUS 3RW5
  • Preferred successor type: 3RW5558-6HA14
  • Connection: Screw terminals
  • Note: Phased-out product

Follow-up article

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RW4465-6BC34
Net Weight -
97.00kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Rated operation current Ie at 40 ∞C Tu -
1076 Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at AC 50HZ -
115 Volt
Rated control supply voltage Us at AC 60HZ -
115 Volt
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Display -
Function -
Single direction
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
115 Volt
Rated control supply voltage at AC 60 Hz -
115 Volt
Rated operating voltage Ue -
200 Volt
Rated operation current Ie at 40 °C Tu -
1076 Ampere
Rated power three-phase motor, inline, at 230 V -
355 Kilowatt
Rated power three-phase motor, inline, at 400 V -
630 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
630 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
1100 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Torque control -
Voltage type for actuating -
AC
