3SB22024LA01

Key-operated switch, 16 mm, round, plastic, CES, 2 switch positions O-I, latching, actuating angle 6

Manufacturer's No: 3SB2202-4LA01     Manufacturer: Siemens
Key-operated switch, 16 mm, round, plastic, CES, 2 switch positions O-I, latching, actuating angle 6

Availability Back Order

£58.01

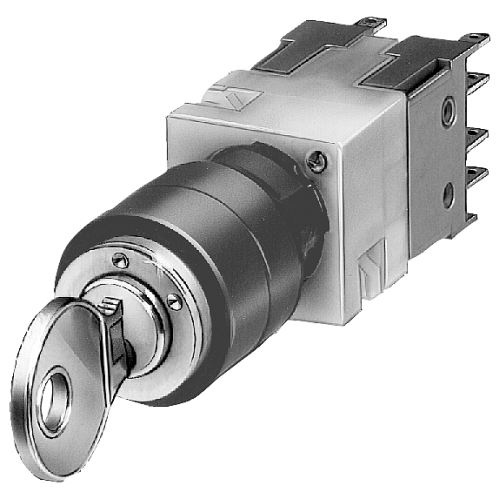

  • Siemens 16mm round plastic keyswitch
  • C key profile with 2 switch positions (On-Off)
  • Latching mechanism
  • Actuating angle of 62 degrees
  • Key removal in Off position


Product

Manufacturer Material ID -
3SB2202-4LA01
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Colour button -
None
Type of control element -
Other
Colour front ring -
Black
Degree of protection (IP rating) -
IP65
Height opening -
20 Millimetre
Hole diameter -
16 Millimetre
Material front ring -
Plastic
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of switch positions -
2
Supply voltage -
5 Volt
Type of electric connection -
Flat plug-in connection
Width opening -
19 Millimetre
