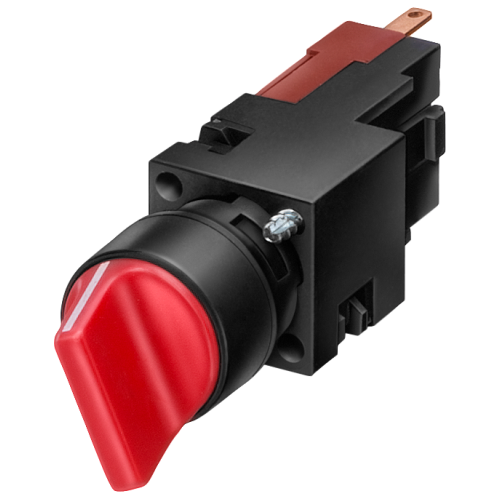

3SB22102DB01

Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching, Actuating angle

Manufacturer's No: 3SB2210-2DB01     Manufacturer: Siemens
Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching, Actuating angle

Availability Back Order

£34.92
  • Selector switch
  • 16 mm round plastic switch
  • Black color
  • 3 switch positions: I-O-II
  • Latching mechanism
  • Actuating angle: 2 x 62 degrees
  • 1 Normally Open (NO) contact
  • 1 Normally Closed (NC) contact


Product

Manufacturer Material ID -
3SB2210-2DB01
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Colour button -
Black
Colour front ring -
Black
Degree of protection (IP rating) -
IP65
Height opening -
17 Millimetre
Hole diameter -
16 Millimetre
Material front ring -
Plastic
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of switch positions -
3
Supply voltage -
5 Volt
Type of control element -
Toggle
Type of electric connection -
Flat plug-in connection
Width opening -
19 Millimetre
With front ring -

Availability Back Order

£34.92
