3SE51321QV20

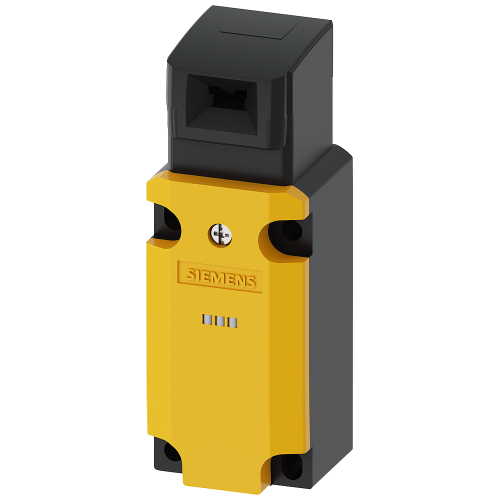

Safety position switch with separate actuator, 1 NO + 2 NC

Manufacturer's No: 3SE5132-1QV20     Manufacturer: Siemens
Safety position switch with separate actuator, 1 NO + 2 NC

Availability On Request

£63.26
  • Safety position switch with separate actuator
  • Plastic enclosure, 40 mm
  • 1 x (M20 x 1.5) slow-action contacts
  • 1 normally open (NO) + 2 normally closed (NC) contacts
  • 2 LEDs (yellow/green)
  • Operating voltage: 24 V DC
  • 5 directions of approach
  • Matching separate actuator: 3SE5000-0AV0 (must be ordered separately)

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5132-1QV20
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Material housing -
Plastic
Type of switching contact -
Slow-action switch
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
37.8 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
110 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of control element -
None
Type of interface for safety communication -
None
Width sensor -
40 Millimetre
With status indication -

Availability On Request

£63.26
