3SE51620CH631AN4

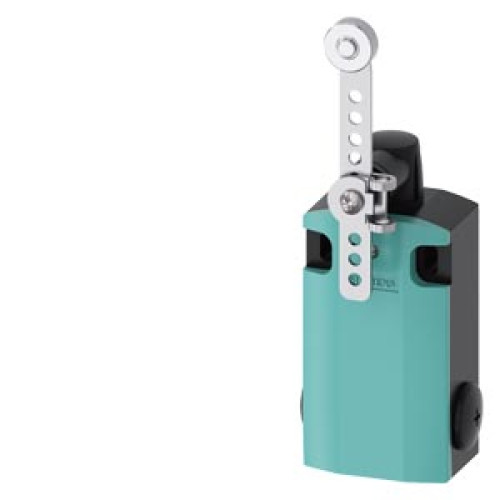

Position switch, metal housing XL, 56 mm wide, with twist lever 27mm, high-grade steel lever

Manufacturer's No: 3SE5162-0CH63-1AN4     Manufacturer: Siemens
Position switch, metal housing XL, 56 mm wide, with twist lever 27mm, high-grade steel lever

Availability On Request

£241.99
  • SIRIUS position switch with metal enclosure XL
  • 56 mm wide with twist lever
  • Adjustable length with grid hole
  • Stainless steel lever and roller (19 mm)
  • Increased corrosion protection (ICP)
  • Connection: 3xM20x1.5
  • Gold-plated contacts: 2x(1 NO/1 NC) snap-action contacts
  • Adapter 3SX5100-3B (with toothed lock washer) included

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3SE5162-0CH63-1AN4
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Number of contacts as change-over contact -
-
Material housing -
Metal
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP66/IP67
Type of control element -
Adjustable rotary lever
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Lacquered
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
61.7 Millimetre
Housing material -
Metal
Interface type -
None
Length of sensor -
214 Millimetre
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 125 V -
6 Ampere
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
56 Millimetre

Availability On Request

£241.99
