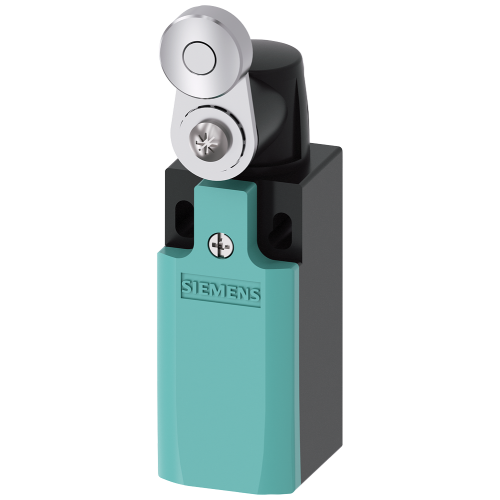

Position switch Plastic 31 mm according to EN 50047 Increased corrosion protection Device connection

3SE52320CK311AJ0

Position switch Plastic 31 mm according to EN 50047 Increased corrosion protection Device connection

Produced by Siemens

Availability Back Order

Price - £46.49
Position switch Plastic 31 mm according to EN 50047 Increased corrosion protection Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable, with Stainless steel lever and plastic roller 19 mm functional at -40 °C Shock and vibration test according to EN 61373, Category 1B
Product
Manufacturer Material ID -
3SE5232-0CK31-1AJ0
Net Weight -
0.10kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216
Technical Specification
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Width sensor -
31 Millimetre
Height of sensor -
46.3 Millimetre
Length of sensor -
111.3 Millimetre
Ambient temperature during operating -
-40 Degrees celsius
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Degree of protection (NEMA) -
12
