3SE52320HC051AB4

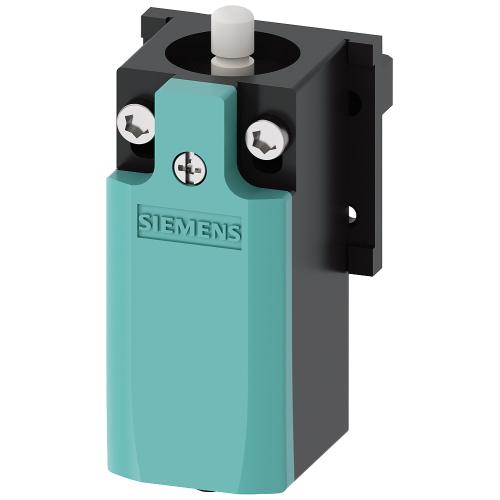

SIRIUS Position switch, plastic enclosure, acc. to EN50047 31 mm, control cabinet type

Manufacturer's No: 3SE5232-0HC05-1AB4     Manufacturer: Siemens
SIRIUS Position switch, plastic enclosure, acc. to EN50047 31 mm, control cabinet type

Availability On Request

£19.72
  • Position switch with plastic enclosure
  • 31 mm according to EN 50047
  • Control cabinet type 1
  • NO/NC snap-action contacts integrated (not replaceable)
  • Rounded plunger
  • Degree of protection: IP40
  • Self-sealing grommet
  • Standard cover in turquoise color
  • Accessories included: screws and mounting plate
  • Does not include locking sheet metal and seal
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5232-0HC05-1AB4
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Diameter sensor -
- Millimetre
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP40
Type of control element -
Plunger
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP40
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
29.6 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
75.7 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre
