3SE52320LK151AN7

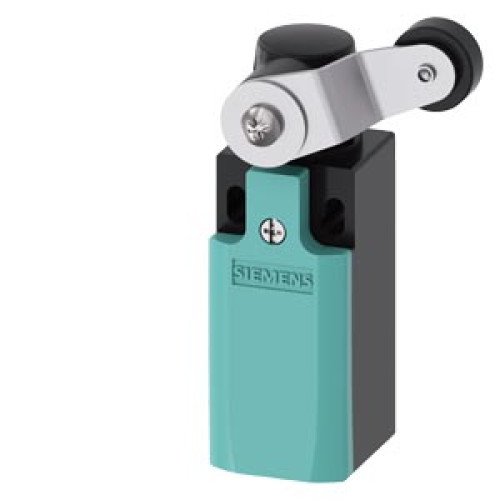

Position switch, plastic housing, 31 mm, device connection, twist lever customer-specific

Manufacturer's No: 3SE5232-0LK15-1AN7     Manufacturer: Siemens
Position switch, plastic housing, 31 mm, device connection, twist lever customer-specific

Availability On Request

£40.54
  • Position switch with plastic enclosure according to EN 50047
  • Dimensions: 31 mm
  • Device connection: 1 x (M20 x 1.5) with 1 normally open and 2 normally closed quick action contacts
  • Twist lever: 35 mm long, right/left adjustable
  • Plastic roller: 19 mm
  • Customized twist lever on cover, turned by 180°, assembled in clockwise at an angle of 70°

Accessories

Component part

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5232-0LK15-1AN7
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Width sensor -
- Millimetre
Diameter sensor -
- Millimetre
Height of sensor -
- Millimetre
Length of sensor -
- Millimetre
Material housing -
Plastic
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP65
Type of control element -
Rotary lever
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Housing material -
Plastic
Interface type -
None
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
