3SE52340BC051AC4

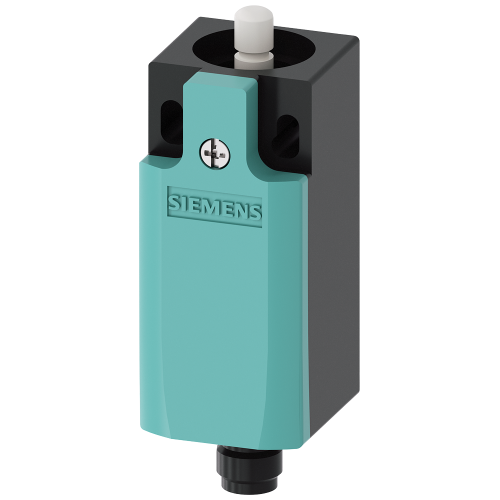

Position switch Plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC slow-action contacts with M

Manufacturer's No: 3SE5234-0BC05-1AC4     Manufacturer: Siemens
Position switch Plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC slow-action contacts with M

Availability On Request

£36.97
  • Position switch with plastic enclosure according to EN 50047
  • 31 mm size
  • 1 Normally Open (NO) and 1 Normally Closed (NC) slow-action contacts
  • Equipped with an M12 connector
  • 4-pole pin assignment: Pin1=21, Pin2=22, Pin3=13, Pin4=14
  • Maximum rating of 250 V and 4 A
  • Rounded plunger

Selectable mandatory product

Accessories

Component part

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5234-0BC05-1AC4
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP65
Type of interface -
None
Type of control element -
Plunger
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
89.7 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Slow-action switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability On Request

£36.97
