3SE52340CD031AJ1

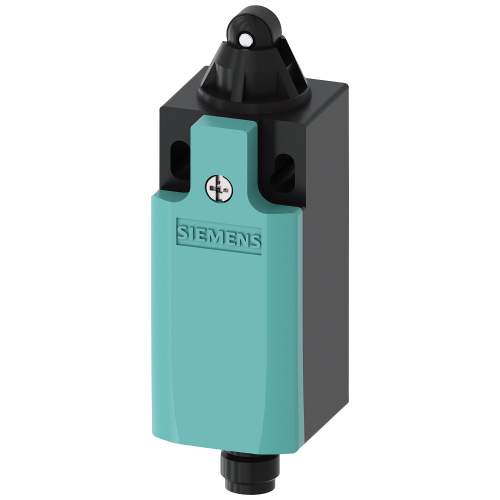

Position switch, plastic housing, EN50047, 31 mm, increased corrosion protection

Manufacturer's No: 3SE5234-0CD03-1AJ1     Manufacturer: Siemens
Position switch, plastic housing, EN50047, 31 mm, increased corrosion protection

Availability On Request

£76.78
  • Position switch with plastic roller plunger, 31 mm size according to EN 50047
  • Increased corrosion protection with M12 connector plug, 4-pole configuration
  • 1 Normally Open (NO) and 1 Normally Closed (NC) quick action contacts
  • Plastic roller diameter of 10 mm, functional at -40°C
  • Shock and vibration tested according to EN 61373, Category 1B

Accessories

Component part

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5234-0CD03-1AJ1
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP65
Type of interface -
None
Type of control element -
Roller cam
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-40 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
33 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
100 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
1
Rated operation current Ie at AC-15, 125 V -
4 Ampere
Rated operation current Ie at AC-15, 24 V -
4 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
31 Millimetre

Availability On Request

£76.78
