3SE52420HK621AJ0

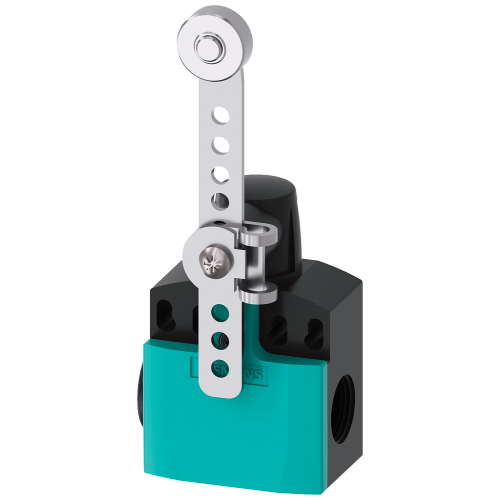

SIRIUS position switch, plastic 50 mm, increased corrosion protection

Manufacturer's No: 3SE5242-0HK62-1AJ0     Manufacturer: Siemens
SIRIUS position switch, plastic 50 mm, increased corrosion protection

Availability On Request

£56.69
  • Position switch with a 50mm plastic twist lever
  • Increased corrosion protection
  • Device connection: 2x (M20x1.5)
  • 1 NO/1 NC snap-action contacts
  • Adjustable-length stainless steel lever with plastic roller (19mm)
  • Functional at -40°C
  • Shock and vibration tested according to EN 61373, Category 1B

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5242-0HK62-1AJ0
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated operation current Ie at AC-15, 125 V -
- Ampere
Diameter sensor -
- Millimetre
Material housing -
Plastic
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP66/IP67
Type of control element -
Adjustable rotary lever
Type of interface -
None
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-40 Degrees celsius
Coating housing -
Other
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP66/IP67
Degree of protection (NEMA) -
12
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
49.4 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
182 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 24 V -
6 Ampere
Rated operation current Ie at DC-13, 125 V -
0.55 Ampere
Rated operation current Ie at DC-13, 24 V -
3 Ampere
Suitable for safety functions -
Switching function -
Quick-break switch
Type of interface for safety communication -
None
Width sensor -
50 Millimetre

Availability On Request

£56.69
