3SE52500AC05

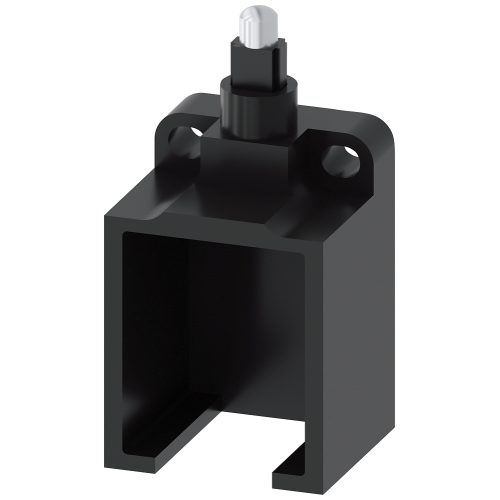

Position switch Plastic enclosure open type 30 mm Metal plunger, can be equipped with all contacts

Manufacturer's No: 3SE5250-0AC05     Manufacturer: Siemens
Position switch Plastic enclosure open type 30 mm Metal plunger, can be equipped with all contacts

View 3D

Availability Back Order

£4.21
  • Position switch with plastic open-type enclosure
  • Metal plunger measuring 30mm
  • Compatible with all types of contacts

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3SE5250-0AC05
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Number of safety auxiliary contacts -
-
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Diameter sensor -
- Millimetre
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Degree of protection (IP) -
Other
Type of interface -
None
Switching function -
Other
Type of electric connection -
Other
Construction type housing -
Other
Degree of protection (IP rating) -
Other
Type of control element -
Plunger
Alignment of the control element -
Roller cam straight
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
27 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
59.2 Millimetre
Type of interface for safety communication -
None
Width sensor -
30 Millimetre

Availability Back Order

£4.21
