3SF13141SB111BA1

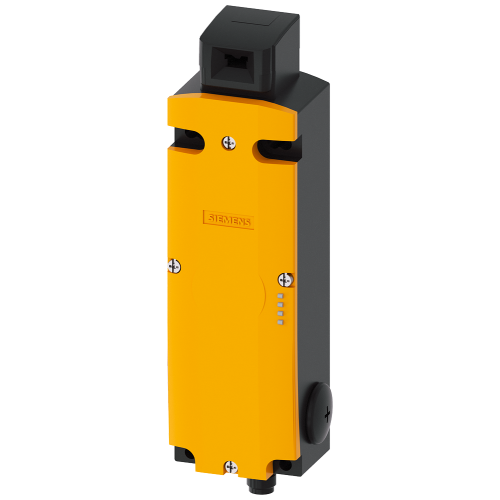

Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Metal enclosure,

Manufacturer's No: 3SF1314-1SB11-1BA1     Manufacturer: Siemens
Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Metal enclosure,

Availability On Request

£467.79
  • Safety position switch with tumbler
  • Locking force: 2600 N
  • 5 directions of approaches
  • Metal enclosure
  • M12 plug
  • ASIsafe integrated
  • Solenoid-locked
  • Magnet voltage: 24 V AC/DC
  • No additional 24 V supply required
  • Monitoring:
    • Actuator: 2 NC/1 NO
    • Magnet: 2 NC/1 NO

Read more

  • Matching separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately

Selectable mandatory product



Product

Manufacturer Material ID -
3SF1314-1SB11-1BA1
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated control supply voltage Us magnet drive at AC 50 Hz -
- Volt
Rated control supply voltage Us magnet drive at AC 60 Hz -
- Volt
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at AC-15, 24 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Rated operation current Ie at DC-13, 24 V -
- Ampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Metal
Type of electric connection -
Plug-in connection M12
Degree of protection (IP) -
IP66/IP67
Type of interface -
AS-Interface
Rated control supply voltage Us magnet drive at DC -
24 Volt
Guard locking force -
2600 Newton
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Interface type -
AS-Interface
Rated control supply voltage magnet drive at DC -
24 Volt
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
2600 Newton
Coating housing -
Lacquered
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP66/IP67
Height of sensor -
43.5 Millimetre
Housing material -
Metal
Length of sensor -
185 Millimetre
Number of safety auxiliary contacts -
4
Suitable for safety functions -
Type of guard locking -
Operating current principle
Type of interface for safety communication -
AS-Interface Safety at Work
Type of switching contact -
Slow-action switch
Width sensor -
54 Millimetre
With status indication -

Availability On Request

£467.79
