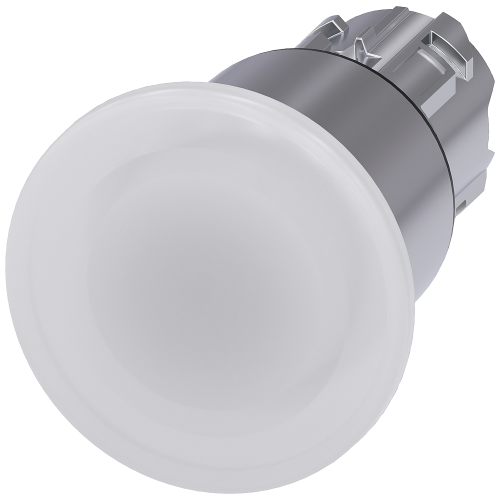

3SU10511ED600AA0

Mushroom pushbutton, illuminated, 22 mm, round, metal, high gloss, white, 40 mm

Manufacturer's No: 3SU1051-1ED60-0AA0     Manufacturer: Siemens
Mushroom pushbutton, illuminated, 22 mm, round, metal, high gloss, white, 40 mm

View 3D

Availability Back Order

£37.10
  • Illuminated mushroom pushbutton
  • 22 mm round metal design
  • Shiny white finish
  • 40 mm in size
  • 3 switch positions
  • Retraction to center position after pushing in
  • Retraction to center position after pulling out the button

Mandatory additional product

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1051-1ED60-0AA0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Unlocking method -
UN
Degree of protection (IP) -
IP67/IP69K
Type of button -
High
Colour front ring -
Other
Colour button -
White
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Diameter cap -
40 Millimetre
Height opening -
32 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Spring-return -
Suitable for illumination -
Width opening -
40 Millimetre
With front ring -
With lighting -

Availability Back Order

£37.10
