3SU10522BP400AA0

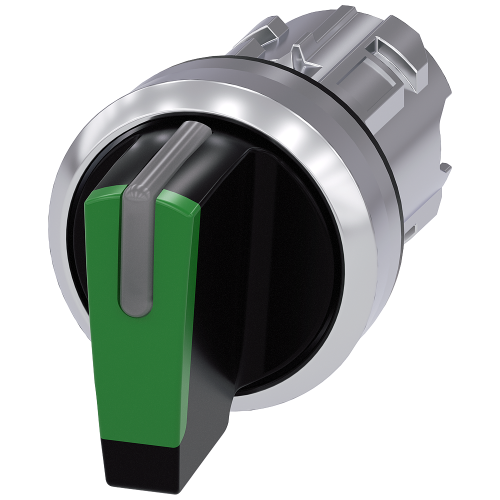

Toggle switch, illuminable, 22 mm, round, metal, high gloss, green, knob, short

Manufacturer's No: 3SU1052-2BP40-0AA0     Manufacturer: Siemens
Toggle switch, illuminable, 22 mm, round, metal, high gloss, green, knob, short

Availability On Request

£11.19
  • Illuminable 22 mm round metal selector switch
  • Shiny green color
  • Short switch with 3 positions: I>O<II
  • Momentary contact on the left, latching on the right
  • Actuating angle of 2x45°
  • Operating positions at 10:30h, 12h, and 13:30h

Mandatory additional product

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1052-2BP40-0AA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Colour front ring -
Other
Construction type lens -
Rectangular
Type of control element -
Toggle
Colour indicator light cap -
Other
Degree of protection (NEMA) -
4X
Colour control element -
Green
Degree of protection (IP), front side -
IP67/IP69K
Height opening -
28.8 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Number of switch positions -
3
Suitable for illumination -
Width opening -
32.3 Millimetre
With front ring -

Availability On Request

£11.19
