3SU11501BA203FA0

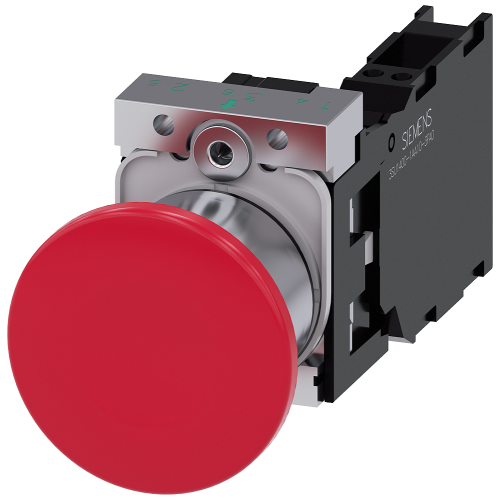

Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching, pull-to-unlatch mechanism, with holder, 1 NO+1 NC, Spring-t

Manufacturer's No: 3SU1150-1BA20-3FA0     Manufacturer: Siemens
Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching, pull-to-unlatch mechanism, with holder, 1 NO+1 NC, Spring-type terminal

Availability On Request

£34.44
  • Mushroom pushbutton
  • 22 mm round metal design
  • Shiny red color
  • 40 mm in size
  • Latching with pull-to-unlatch mechanism
  • Includes holder
  • 1 Normally Open + 1 Normally Closed contact
  • Features spring-type terminals

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1150-1BA20-3FA0
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Construction type lens -
UN
Supply voltage lamp -
- Volt
Degree of protection (IP) -
IP67/IP69K
Colour front ring -
Chrome
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
27.5 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Metal
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Type of button -
Mushroom
Type of electric connection -
Spring clamp connection
Width opening -
40 Millimetre
With front ring -

Availability On Request

£34.44
