3SU11504BF113FA0

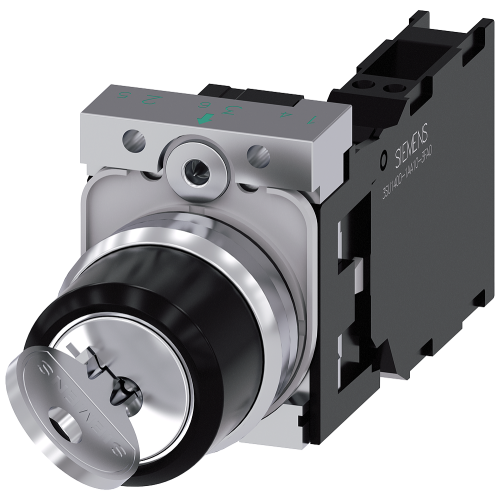

Key-operated switch RONIS, 22 mm, round, metal, high gloss, key removal O+I

Manufacturer's No: 3SU1150-4BF11-3FA0     Manufacturer: Siemens
Key-operated switch RONIS, 22 mm, round, metal, high gloss, key removal O+I

View 3D

Availability Back Order

£38.55
  • RONIS key-operated switch
  • 22 mm round metal design
  • Shiny finish
  • Lock number: SB30
  • 2 keys included
  • 2 switch positions: ON-OFF
  • Latching mechanism
  • Actuating angle: 90 degrees
  • Key removal in ON and OFF positions
  • Comes with holder

Read more

  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact
  • Spring-type terminal
  • Compatible with special locks: SB31, 421, 455

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3SU1150-4BF11-3FA0
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Type of electric connection -
UN
Type of control element -
UN
Degree of protection (IP) -
IP67/IP69K
Colour button -
Silver
Colour front ring -
Other
Switching function latching -
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
49.4 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of switch positions -
2
Supply voltage -
500 Volt
Width opening -
29.5 Millimetre
With front ring -

Availability Back Order

£38.55
