3SU11507BD881NA0

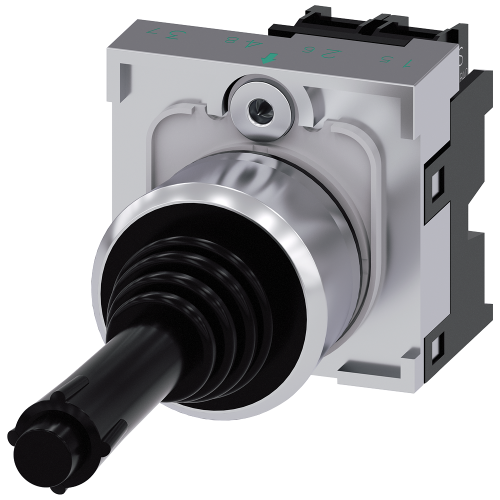

Coordinate switch, 22 mm, round, metal, high gloss, black, 1 NO, 1 NO

Manufacturer's No: 3SU1150-7BD88-1NA0     Manufacturer: Siemens
Coordinate switch, 22 mm, round, metal, high gloss, black, 1 NO, 1 NO

Availability On Request

£83.42
  • 22mm round metal shiny black coordinate switch
  • Vertical momentary contact type with mechanical interlocking
  • 2 switch positions with holder
  • 1 Normally Open (NO) contact
  • Screw terminals

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1150-7BD88-1NA0
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CH
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-21, 400 V -
- Ampere
Number of switch levels -
2
Degree of protection (IP) -
IP65/IP67
Colour front ring -
Chrome
Degree of protection (NEMA) -
Other
Centre mounting, hole diameter -
22.3 Millimetre
Degree of protection (IP rating) -
IP65/IP67
Joy stick length -
75.6 Millimetre
Locking in 0-position -
Material front ring -
Metal
Number of actuation directions -
2
Number of make-and-break contacts per direction -
0
Number of normally closed contacts per actuation direction -
0
Number of normally open contacts per actuation direction -
2
Number of switch positions -
2
With front ring -
With retraction in 0-position -

Availability On Request

£83.42
