3SU18010NB104HC2

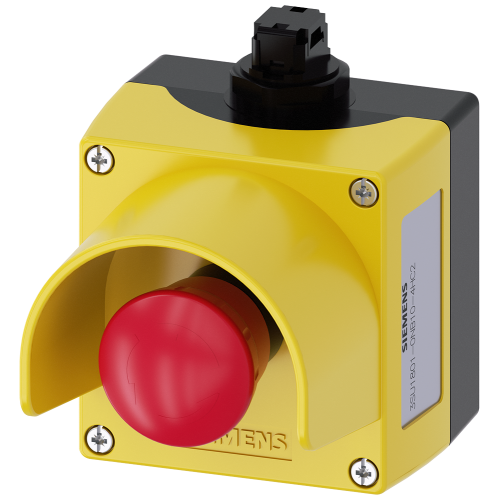

AS-Interface enclosure for command devices, 22 mm, plastic, yellow, protective collar

Manufacturer's No: 3SU1801-0NB10-4HC2     Manufacturer: Siemens
AS-Interface enclosure for command devices, 22 mm, plastic, yellow, protective collar

View 3D

Availability Back Order

£204.77
  • AS-Interface enclosure for command devices
  • Enclosure size: 22 mm, round
  • Material: Plastic
  • Top part color: Yellow with protective collar
  • Control point: 1 plastic control point
  • Emergency Stop mushroom pushbutton: 40 mm, red, rotate-to-unlatch
  • Contacts: 1 Normally Closed (NC) contact, spring-type terminal
  • Mounting: Floor mounting
  • Insulation displacement system on top

Selectable mandatory product

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1801-0NB10-4HC2
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Material housing -
Plastic
Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Yellow
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Plastic
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
1
Number of push buttons -
0
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt
Suitable for emergency stop -

Availability Back Order

£204.77
