3SU18020AB104HB1

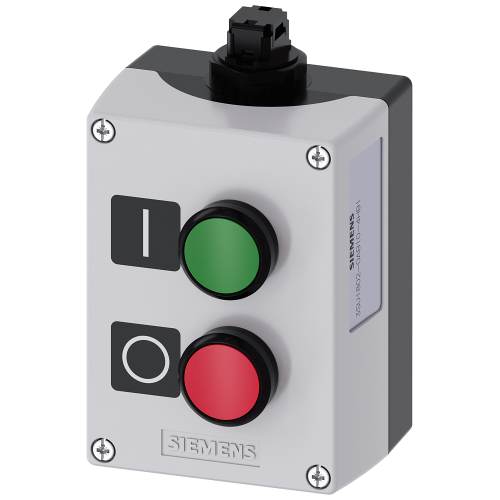

AS-Interface enclosure for command devices, 22 mm, round

Manufacturer's No: 3SU1802-0AB10-4HB1     Manufacturer: Siemens

Availability Back Order

£243.95
  • AS-Interface enclosure for command devices
  • 22 mm round plastic enclosure
  • Gray top part
  • 2 control points with pushbuttons
  • Green pushbutton labeled "I" with 1 normally open contact
  • Red pushbutton labeled "O" with 1 normally closed contact
  • Recess for labels
  • Spring-type terminals
  • Floor mounting
  • Insulation displacement system on top

Read more

  • Labels enclosed

Selectable mandatory product

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1802-0AB10-4HB1
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Material housing -
Plastic
Rated control supply voltage Us at AC 50HZ -
18 Volt
Rated control supply voltage Us at AC 60HZ -
18 Volt
Rated control supply voltage Us at DC -
18 Volt
Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Grey
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Plastic
Number of command positions -
2
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
0
Number of push buttons -
2
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
18 Volt
Rated control supply voltage at AC 60 Hz -
18 Volt
Rated control supply voltage at DC -
18 Volt

Availability Back Order

£243.95
