3SU18510AH004NB1

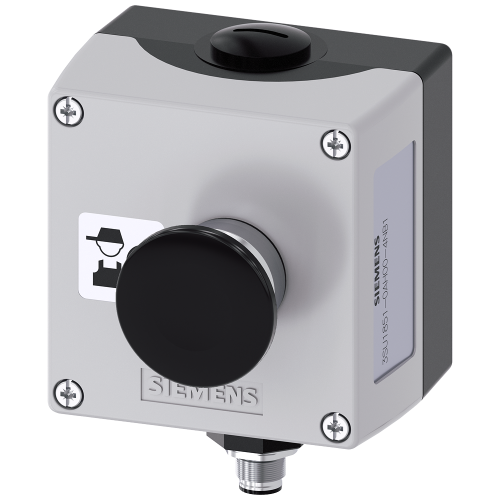

Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 1 co

Manufacturer's No: 3SU1851-0AH00-4NB1     Manufacturer: Siemens
Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 1 co

Availability On Request

£135.88
  • Enclosure for command devices: 22 mm round metal enclosure
  • Control point: 1 metal control point with Mushroom pushbutton (40 mm, black)
  • Contact type: Momentary, 1 Normally Open (NO)
  • Terminal: Spring-loaded terminal
  • Mounting: Floor mounting
  • Label: Silver with black font, graphic symbol: Autoplay
  • Connector: M12 connector (5-pin) at the bottom
  • Additional: Insulated reserve conductors, Label glued in

Selectable mandatory product

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1851-0AH00-4NB1
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Material housing -
Metal
Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Degree of protection (IP) -
IP67/IP69K
Degree of protection (NEMA) -
13
Colour housing cover -
Grey
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Metal
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
1
Number of push buttons -
0
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt

Availability On Request

£135.88
