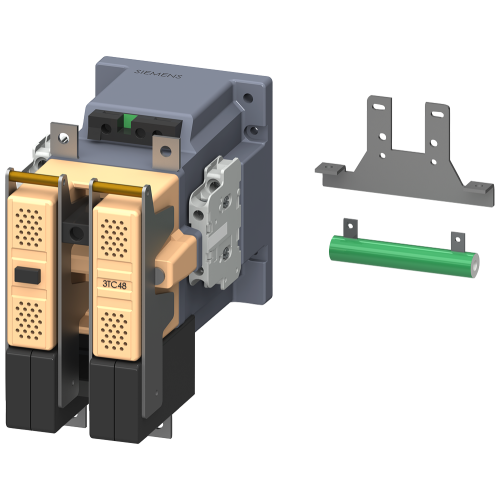

3TC48170CF4

Contactor size 4, 2-pole DC-3 and 5, 75 A auxiliary switch 21 (2 NO + 1 NC) AC operation 110 V DC

Manufacturer's No: 3TC4817-0CF4     Manufacturer: Siemens
Contactor size 4, 2-pole DC-3 and 5, 75 A auxiliary switch 21 (2 NO + 1 NC) AC operation 110 V DC

Availability On Request

£1,544.05
  • Contactor Size: 4
  • Configuration: 2-pole
  • Amperage: 75 A
  • Auxiliary Switch: 22 (2 NO + 2 NC)
  • Operating Voltage: 110 V DC
  • DC-3 and DC-5 operation

Follow-up article



Product

Manufacturer Material ID -
3TC4817-0CF4
Net Weight -
4.59kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at DC-3 / DC-5 at 440 V -
75 Ampere
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
0
Rated operation power at DC-3 / DC-5 at 440 V -
27 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability On Request

£1,544.05
