3TC52170LJ8

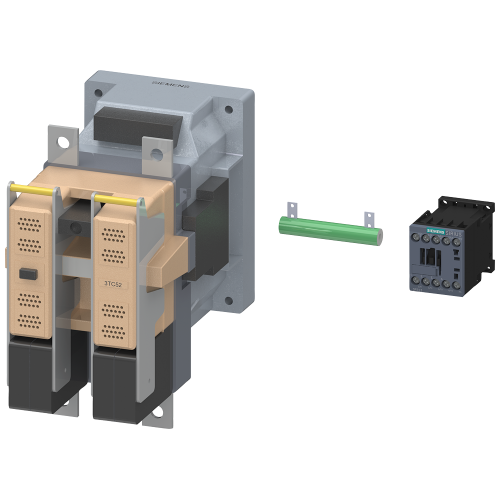

Contactor size 8, 2-pole, DC-3 and 5, 170 A at 750 V auxiliary contacts 21 (2 NO+1 NC)

Manufacturer's No: 3TC5217-0LJ8     Manufacturer: Siemens
Contactor size 8, 2-pole, DC-3 and 5, 170 A at 750 V auxiliary contacts 21 (2 NO+1 NC)

Availability On Request

£1,894.24
  • Contactor Size: 8, 2-pole
  • DC Ratings: DC-3 and DC-5
  • Current Rating: 170 A at 750 V
  • Auxiliary Contacts: 21 (2 NO + 1 NC)
  • Control Voltage: 72 V DC
  • Operation: DC with varistor and series resistor
  • Operating Range: 0.7 to 1.25 x US


Product

Manufacturer Material ID -
3TC5217-0LJ8
Net Weight -
10.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at DC-3 / DC-5 at 440 V -
220 Ampere
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
0
Rated operation power at DC-3 / DC-5 at 440 V -
82 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability On Request

£1,894.24
