3TF68338DP4

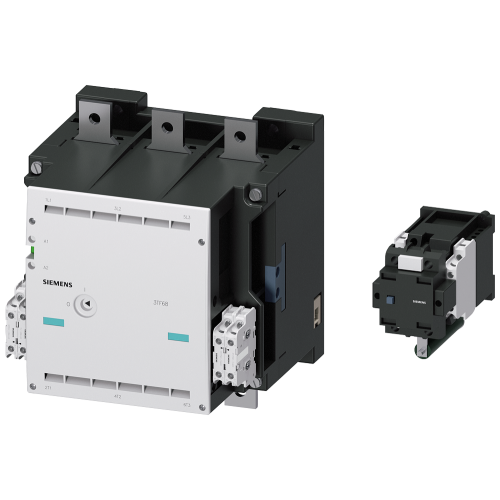

Contactor size 14, 3-pole, AC-3, 335 kW, 400/380 V (1000 V) (3 NO + 3 NC) 3TC4417-4 A

Manufacturer's No: 3TF6833-8DP4     Manufacturer: Siemens
Contactor size 14, 3-pole, AC-3, 335 kW, 400/380 V (1000 V) (3 NO + 3 NC) 3TC4417-4 A

Availability On Request

£6,478.23
  • Vacuum contactor: AC-3e/AC-3, 630 A, 335 kW, 400 V, Ue 1000 V, 3-pole
  • DC drive: Conventional installation with series resistor and reversing contactor 3TC4417-4A
  • DC economy circuit with auxiliary contacts: 3 NO + 3 NC
  • Main circuit: Busbar control
  • Auxiliary circuit: Screw terminal

Accessories



Product

Manufacturer Material ID -
3TF6833-8DP4
Net Weight -
20.30kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
TR
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
230 Volt
Rated operation power at AC-4, 400 V -
168 Kilowatt
Modular version -
Number of auxiliary contacts as normally closed contact -
3
Number of auxiliary contacts as normally open contact -
3
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
230 Volt
Rated operation current Ie at AC-1, 400 V -
700 Ampere
Rated operation current Ie at AC-3, 400 V -
630 Ampere
Rated operation current Ie at AC-4, 400 V -
610 Ampere
Rated operation power at AC-3, 400 V -
355 Kilowatt
Rated operation power NEMA -
389.8143375 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
DC

Availability On Request

£6,478.23
