3TF68338QL7

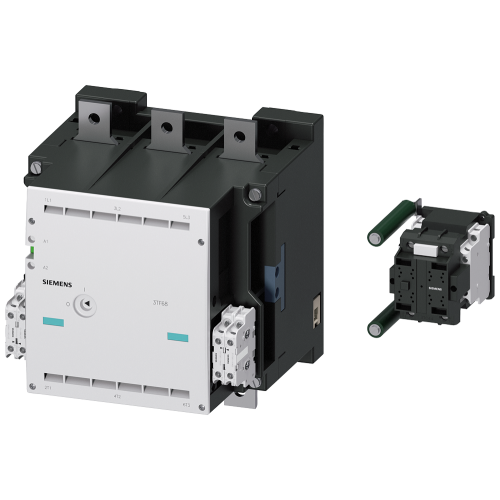

Contactor size 14, 3-pole AC-3 335 kW, 400/380 V (1000 V) auxiliary switch 33 (3 NO + 3 NC)

Manufacturer's No: 3TF6833-8QL7     Manufacturer: Siemens
Contactor size 14, 3-pole AC-3 335 kW, 400/380 V (1000 V) auxiliary switch 33 (3 NO + 3 NC)

Availability On Request

£6,944.10
  • Vacuum contactor AC-3e/AC-3
  • Rated current: 630 A
  • Rated power: 335 kW at 400 V
  • Rated insulation voltage: 1000 V
  • Configuration: 3-pole
  • Control voltage: 220-240 V AC (50/60 Hz)
  • Drive: Conventional rectifier bridge with built-in reversing contactor
  • Auxiliary contacts: 3 normally open (NO) + 3 normally closed (NC)
  • Main circuit: Busbar
  • Control and auxiliary circuit: Screw terminal

Accessories



Product

Manufacturer Material ID -
3TF6833-8QL7
Net Weight -
20.99kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
TR
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
220 Volt
Rated operation power at AC-4, 400 V -
168 Kilowatt
Modular version -
Number of auxiliary contacts as normally closed contact -
3
Number of auxiliary contacts as normally open contact -
3
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
220 Volt
Rated operation current Ie at AC-1, 400 V -
700 Ampere
Rated operation current Ie at AC-3, 400 V -
630 Ampere
Rated operation current Ie at AC-4, 400 V -
610 Ampere
Rated operation power at AC-3, 400 V -
355 Kilowatt
Rated operation power NEMA -
389.8143375 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC

Availability On Request

£6,944.10
