3UF70111AU001

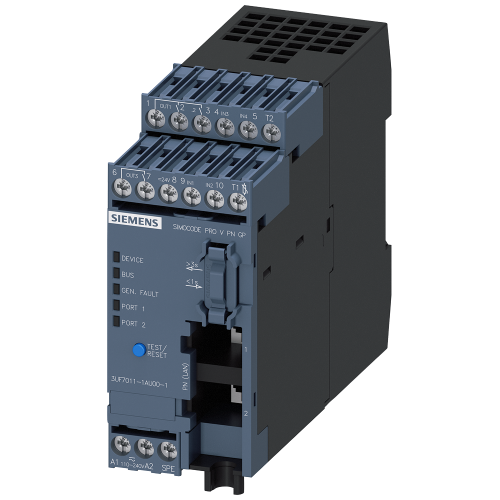

Basic unit SIMOCODE pro V PN GP, Ethernet/PROFINET IO, 2xRJ45, 110-240 V AC/DC

Manufacturer's No: 3UF7011-1AU00-1     Manufacturer: Siemens
Basic unit SIMOCODE pro V PN GP, Ethernet/PROFINET IO, 2xRJ45, 110-240 V AC/DC

Availability On Request

£444.05
  • Unit: SIMOCODE pro V PN GP Ethernet/PROFINET IO
  • System Redundancy: PN system redundancy
  • Communication: OPC UA server, Web server
  • Transmission Rate: 100 Mbps
  • Bus Connection: 2 x RJ45
  • Inputs/Outputs: 4 I/3 Q freely parameterizable
  • Power Supply: 110-240 V AC/DC
  • Additional Features: Input for thermistor connection, Monostable relay outputs
  • Expandability: Compatible with DM, TM, EM extension modules
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7011-1AU00-1
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of analogue inputs -
-
Number of analogue outputs -
-
Rated operation current Ie -
- Ampere
Type of interface -
UN
Rated operation frequency -
- Hertz
Rated voltage Ue at AC 50 Hz -
- Volt
Rated voltage Ue at AC 60 Hz -
- Volt
Rated voltage Ue at DC -
- Volt
Type of connection system -
UN
Degree of protection (NEMA) -
UN
Number of binary inputs -
4
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Degree of protection (IP) -
IP20
Voltage type for actuating -
AC/DC
Current detection module -
Degree of protection (IP rating) -
IP20
Input for thermistor connection -
Number of digital inputs -
4
Number of electronic outputs -
0
Number of outputs, with contact -
3
Switching function -
Mono stable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection

Availability On Request

£444.05
