3UF70111AU002

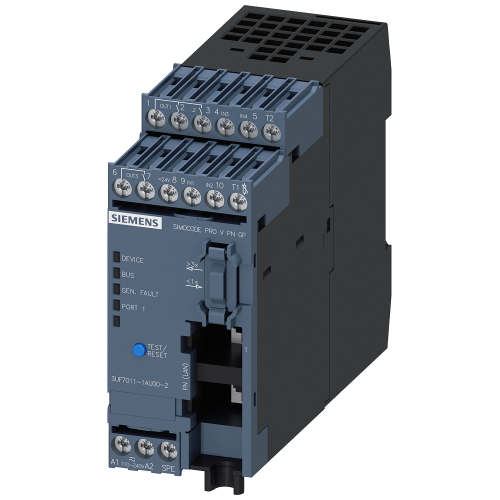

Basic unit SIMOCODE pro V PN GP Ethernet/PROFINET IO, PN system redundancy, OPC UA server, Web serve

Manufacturer's No: 3UF7011-1AU00-2     Manufacturer: Siemens
Basic unit SIMOCODE pro V PN GP Ethernet/PROFINET IO, PN system redundancy, OPC UA server, Web serve

Availability On Request

£365.14
  • SIMOCODE pro V PN GP Ethernet/PROFINET IO
  • PN system redundancy
  • OPC UA server
  • Web server
  • Transmission rate: 100 Mbps
  • 1 x bus connection via RJ45
  • 4 inputs/3 outputs freely parameterizable
  • Input voltage: 110-240 V AC/DC
  • Monostable relay outputs
  • Expandable by 1 extension module (DM, TM, EM)
Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7011-1AU00-2
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Number of analogue inputs -
-
Number of analogue outputs -
-
Rated operation current Ie -
- Ampere
Type of interface -
UN
Rated operation frequency -
- Hertz
Rated voltage Ue at AC 50 Hz -
- Volt
Rated voltage Ue at AC 60 Hz -
- Volt
Rated voltage Ue at DC -
- Volt
Type of connection system -
UN
Degree of protection (NEMA) -
UN
Number of binary inputs -
4
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Degree of protection (IP) -
IP20
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated control supply voltage at DC -
110 Volt
Voltage type for actuating -
AC/DC
Current detection module -
Degree of protection (IP rating) -
IP20
Input for thermistor connection -
Number of digital inputs -
4
Number of electronic outputs -
0
Number of outputs, with contact -
3
Switching function -
Mono stable
Type of electrical connection for auxiliary- and control current circuit -
Screw connection

Availability On Request

£365.14
