3UF71131BA000

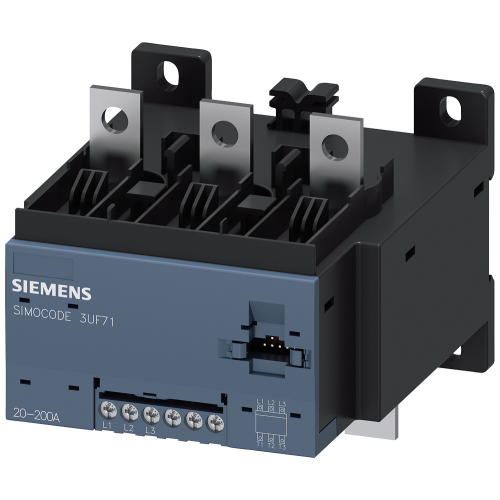

Current / Voltage Measuring Module 690V 20-200A Bus Bar

Manufacturer's No: 3UF7113-1BA00-0     Manufacturer: Siemens
Current / Voltage Measuring Module 690V 20-200A Bus Bar

Availability On Request

POA

This product has been superseded by

3UF71131BA010

Please check compatibility before purchasing.

  • Measures current from 20A to 200A
  • Voltage measurement up to 690V
  • Overall width: 120mm
  • Busbar connection

Follow-up article

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3UF7113-1BA00-0
Net Weight -
1.04kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Switching function -
UN
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of binary inputs -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie -
- Ampere
Number of electronic outputs -
-
Type of interface -
UN
Rated voltage Ue at DC -
- Volt
Voltage type for actuating -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Current detection module -
Degree of protection (IP rating) -
IP00
Number of outputs, with contact -
0
Rated operation frequency -
50 Hertz
Rated voltage Ue at AC 50 Hz -
110 Volt
Rated voltage Ue at AC 60 Hz -
110 Volt
Type of connection system -
Rail connection
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage detection module -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3UF71131BA010

Please check compatibility before purchasing.
