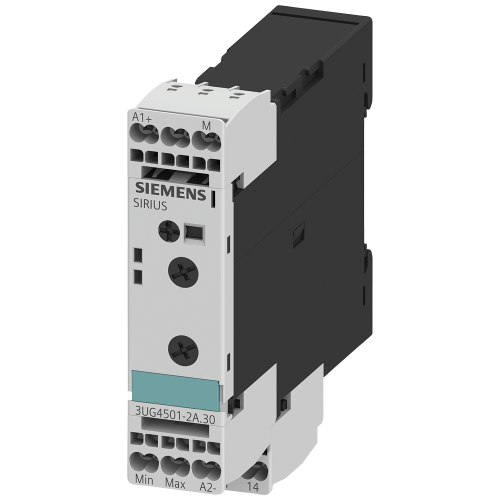

3UG45012AW30

Analog monitoring relay Fill level monitoring Resistance monitoring from 2 to 200 kohm 0vershoot and

Manufacturer's No: 3UG4501-2AW30     Manufacturer: Siemens
Analog monitoring relay Fill level monitoring Resistance monitoring from 2 to 200 kohm 0vershoot and

View 3D

Availability Back Order

£108.70
  • Analog monitoring relay for fill level monitoring
  • Resistance monitoring range: 2 to 200 kohm
  • Input voltage: 24 to 240 V AC/DC, 50 to 60 Hz
  • Control options: 2-step or 1-step
  • Tripping delay: 0.5 to 10 seconds
  • Contact type: 1 change-over contact
  • Spring-type connection system

Accessories



Product

Manufacturer Material ID -
3UG4501-2AW30
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Physical measurement principle -
Other
Voltage type for actuating -
AC/DC
Depth -
91 Millimetre
Height -
94 Millimetre
Max. permitted off-delay time -
10 Second
Max. permitted operate delay time -
10 Second
Min. adjustable off-delay time -
0.5 Second
Min. adjustable operate delay time -
0.5 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of inputs for electrodes -
1
Response value sensitivity adjustable -
Type of electric connection -
Spring clamp connection
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£108.70
