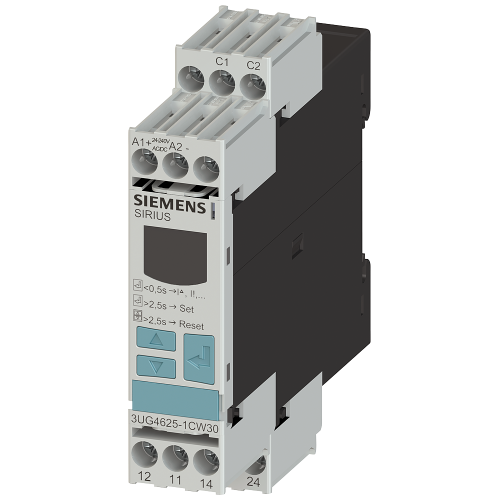

3UG46251CW30

Digital monitoring relay for residual current monitoring (with current transformer 3UL23) Setting ra

Manufacturer's No: 3UG4625-1CW30     Manufacturer: Siemens

Availability In Stock

£217.40
  • Digital monitoring relay for residual current monitoring
  • Setting range: 0.03 to 40 A
  • Supply voltage: 24 to 240 V AC/DC, 50-60Hz
  • ON delay and tripping delay: 0.1 to 20 s
  • Shutdown hysteresis: Up to 50%
  • Warning hysteresis: 5% fixed
  • Width: 22.5 mm
  • 2 change-over contacts
  • Option for fault buffer screw terminal

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4625-1CW30
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Function -
For three-phase supply system
Rated frequency -
16 Hertz
Rated voltage -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
91 Millimetre
Error registration possible -
Height -
102 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
20 Second
Min. adjustable delay-on energization time -
0 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30 Milliampere
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -

Availability In Stock

£217.40
