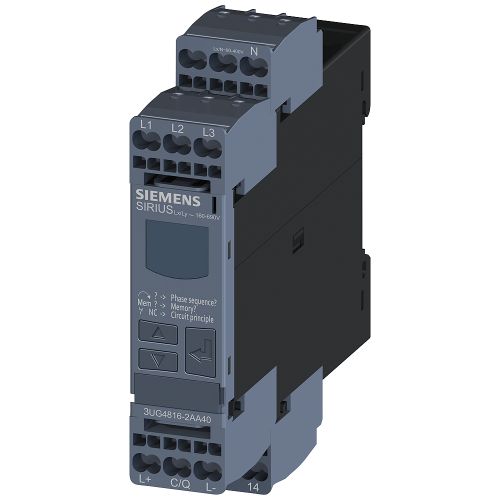

3UG48162AA40

Monitoring relay, digital for 3Ph.-Spannung with N cond. for IO-Link AC 50 to

Manufacturer's No: 3UG4816-2AA40     Manufacturer: Siemens
Monitoring relay, digital for 3Ph.-Spannung with N cond. for IO-Link AC 50 to

Availability On Request

£275.06

This product has been superseded by

3UG58162AA40

Please check compatibility before purchasing.

  • Type: 3-phase+N digital monitoring relay
  • Voltage Range: 160 to 690 V AC
  • Features: Phase sequence, phase failure, phase asymmetry detection
  • Additional Features: Undervoltage and overvoltage protection
  • Hysteresis: 1-20 V
  • Delay Time: Line stabilization delay, tripping delay
  • Contact Type: 1 changeover contact
  • Connection: Spring-loaded connection system
  • Communication: IO-Link compatible
  • Frequency: 50-60 Hz

Accessories

Follow-up article

Product video
Product video


Product

Manufacturer Material ID -
3UG4816-2AA40
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Depth -
91 Millimetre
Function over voltage detection -
Function under voltage detection -
Height -
103 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Phase failure detection -
Phase imbalance monitoring -
Phase sequence monitoring -
Type of electric connection -
Spring clamp connection
Voltage measurement range -
90 Volt
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With detachable clamps -

Availability On Request

£275.06
Sign in or Register for customer prices.

This product has been superseded by

3UG58162AA40

Please check compatibility before purchasing.
