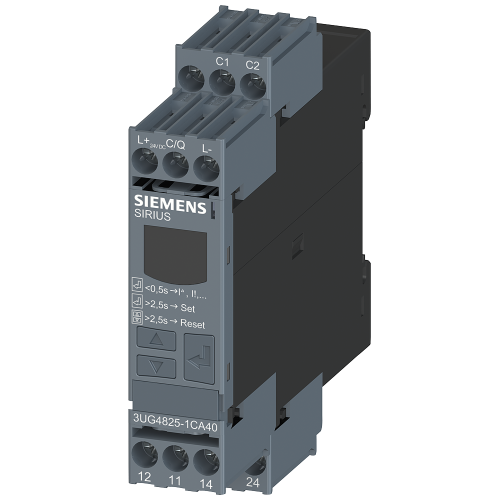

3UG48251CA40

Monitoring relay, digital, transformer 3UL23 screw

Manufacturer's No: 3UG4825-1CA40     Manufacturer: Siemens
Monitoring relay, digital, transformer 3UL23 screw

Availability On Request

£285.67
  • Digital monitoring relay for residual current monitoring
  • Residual-current transformer 3UL23 for IO-Link
  • Setting range: 0.03 A to 40 A
  • Separate settings for warning threshold and switch-off value
  • ON delay and tripping delay: 0 to 999.9 s
  • Shutdown hysteresis up to 50%
  • Warning hysteresis: 5% fixed
  • Width: 22.5mm
  • 2 change-over contacts
  • Option for fault buffer screw terminal

Selectable mandatory product

Accessories

Follow-up article

Product video
Product video


Product

Manufacturer Material ID -
3UG4825-1CA40
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Function -
For three-phase supply system
Rated frequency -
16 Hertz
Rated voltage -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Voltage type for actuating -
DC
Depth -
91 Millimetre
Error registration possible -
Height -
102 Millimetre
Indication of difference current -
Max. permitted delay-on energization time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value amperage 1 -
30 Milliampere
Response value amperage 2 -
30 Milliampere
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -

Availability On Request

£285.67
