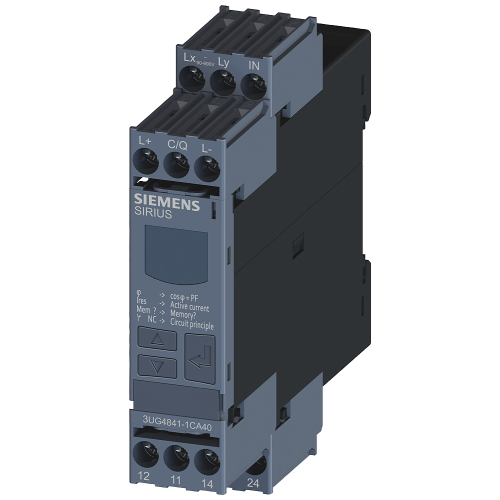

3UG48411CA40

Monitoring relay, digital, cos-phi a. current monitoring for IO-Link 90 to 690

Manufacturer's No: 3UG4841-1CA40     Manufacturer: Siemens

Availability Back Order

£247.22
  • Digital monitoring relay for cos phi and current monitoring
  • Input voltage range: 90 to 690 V AC
  • Current range: 0.2 to 10 A
  • ON-delay time for overshoot and undershoot
  • Tripping delay time
  • Hysteresis range: 0.1 to 3.0 A
  • 2 change-over contacts with screw terminals

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4841-1CA40
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated voltage -
90 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Measurement current -
0.2 Ampere
Adjustable setting value for Cos-Phi -
0.1
Depth -
91 Millimetre
Height -
102 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of phases -
1
Rated operation frequency -
0 Hertz
Type of electric connection -
Screw connection
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£247.22
