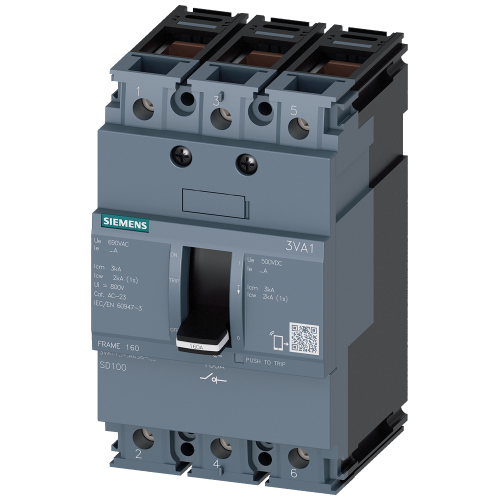

3VA11101AA360AA0

switch disconnector 3VA1 IEC frame 160 3-pole SD100, In=100A without overload protection w/o short-c

Manufacturer's No: 3VA1110-1AA36-0AA0     Manufacturer: Siemens

Availability Back Order

£213.83
  • Type: Switch Disconnector
  • Model: 3VA1
  • Standard: IEC
  • Frame Size: 160
  • Poles: 3
  • Rated Current: 100A
  • Overload Protection: Not included
  • Short-Circuit Protection: Not included
  • Connection Type: Clamp
Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1110-1AA36-0AA0
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Rated voltage -
- Volt
Degree of protection (IP) -
UN
Position of connection for main current circuit -
UN
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
- kiloampere
Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
- Ampere
Type of electrical connection of main circuit -
Other
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP40
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated permanent current at AC-21, 400 V -
100 Ampere
Rated permanent current at AC-23, 400 V -
100 Ampere
Rated permanent current Iu -
100 Ampere
Suitable for front mounting 4-hole -
Type of control element -
Rocker lever
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
Voltage release optional -
