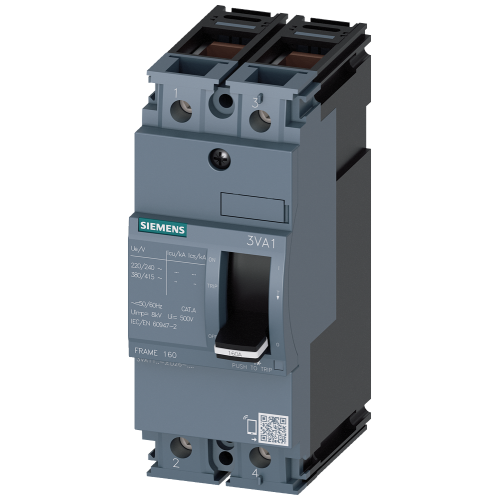

3VA11505ED260AA0

circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415V 2-pole

Manufacturer's No: 3VA1150-5ED26-0AA0     Manufacturer: Siemens
circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415V 2-pole

Availability On Request

£205.98
  • Circuit breaker 3VA1 IEC Frame 160
  • Breaking capacity class M: Icu=55 kA @ 415 V
  • 2-pole, line protection TM210, FTFM
  • Rated current: In=50 A
  • Overload protection: Ir=50 A
  • Short-circuit protection: Ii=10 x In
  • Terminal connection

Accessories

Question and Answer (Q&A video)
Product video
Instructional video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3VA1150-5ED26-0AA0
Net Weight -
0.67kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Overload release current setting -
50 Ampere
Position of connection for main current circuit -
Front
Power loss -
9.74 Watt
Rated permanent current Iu -
50 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
415 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp

Availability On Request

£205.98
