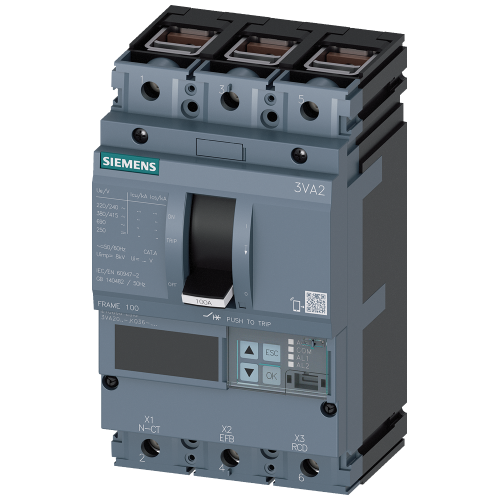

3VA20255KQ360AA0

circuit breaker 3VA2 IEC Frame 100 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU860, LSIG, In=25 A overl

Manufacturer's No: 3VA2025-5KQ36-0AA0     Manufacturer: Siemens
circuit breaker 3VA2 IEC Frame 100 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU860, LSIG, In=25 A overload protection Ir...

Availability On Request

£1,008.54
  • Circuit breaker 3VA2 IEC Frame 100
  • Breaking capacity class M Icu=55 kA @ 415 V
  • 3-pole, line protection ETU860, LSIG
  • Overload protection In=25 A, Ir=10 A...25 A
  • Short-circuit protection Isd=0.6-10x In, Ii=1.5-12x In
  • Neutral conductor protection
  • Optionally with external current transformer
  • Up to 160% ground-fault protection
  • Can be switched off Ig=0.2-1 x In, tg=0.05-0.8s
  • Terminal connection

Accessories

Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2025-5KQ36-0AA0
Net Weight -
2.33kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
15 Ampere
Adjustment range undelayed short-circuit release -
37 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
10 Ampere
Position of connection for main current circuit -
Front
Power loss -
0.84 Watt
Rated permanent current Iu -
25 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp
